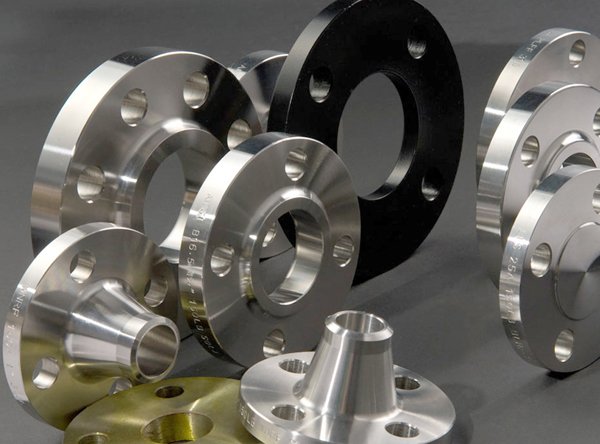

ASTM A182/A240 Stainless Steel 321/321H Flanges

Stainless Steel 321 Flanges | Stainless Steel 321H Flanges Manufacturer | Stainless Steel ASTM A182 321/321H Flanges. SS 321/321H UNS S32100/S32109 Flanges | DIN 1.4541/1.4878 SS Flanges Manufacturer In Mumbai

We firmly believe in contributing to an enterprises progress, not only as a provider of goods and services but as a partner in building a strong and booming business. We, Rexton Steel & Alloys undertake several strategies and implement them through effective processes that add to the value of business. We are a manufacturer, supplier and exporter of Stainless Steel 321/ 321H Flanges that are precision-made, highly accurate in dimensions and are made using the most effective contemporary machinery and raw materials that are supreme in quality. Our SS UNS S32109 Forged Flanges are made using the forging process, using mechanical or thermal energy. They prevent the formation of any cavities during welding and have a better impact strength compared to Cast flanges, making them superior to use in the oil mills and mining industry.

As an acclaimed undertaking of the business, Rexton Steel & Alloys is included in offering an unfathomable cluster of Stainless Steel 321/321H Flanges as a maker, exporter, stockiest and supplier to our household and worldwide customers. Alloy 321 (UNS S32100) is titanium settled austenitic Stainless Steel Flanges with great general corrosion resistance. Alloy 321H (UNS S32109) Stainless Steel Flanges is the higher carbon (0.04 - 0.10) adaptation of the combination.

Regarding diverse evaluations, we offer these Flanges in various sorts, for example, SS Slip On Flanges, SS Blind Flanges, SS Weld Neck Flanges, SS Socket Weld Flanges, SS Spectacle Blind Flanges, SS Screwed/Threaded Flanges, SS Reducing Flanges, and SS Ring Type Joint Flanges (RTJ). In the interim, our costs of such spines are set remembering customers prerequisite.

As for national and global nature of crude materials, we likewise offer these SS 321/321H Flanges in tweaked sizes and thicknesses according to particular requests by our regarded customers at business sector driving costs.

Product Features:

  • High corrosion resistance in tough environments
  • Accurate dimensions
  • Can sustain high pressure & temperature load
  • Lower intergranular precipitation
  • Smooth transition from flange thickness to pipe
  • Ensure excellent stress distribution
  • Excellent high temperature oxidation resistance

Specification:

Dimension Std ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Specification ASTM A182 / A240 & ASME SA182 / SA240
Size ½” NB – 48” NB
Class 150#, 300#, 600#, 900#, 1500#, 2500#, etc
Pressure DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, etc
Werkstoff Nr 321 / 1.4541
321H / 1.4878

Material & Grade :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L

Chemical Composition :

% Cr Ni C Si Mn P S N Ti Fe
321 min:17.0
max:19.0
min: 9.0
max:12.0
max:0.08 max:0.75 max:2.0 max:0.045 max:0.03 max:0.10 min:5*(C+N)
max:0.70
Balance
321H min:17.0
max:19.0
min: 9.0
max:12.0
min:0.04
max:0.10
min:18.0
max:20.0
max:2.0 max:0.045 max:0.03 max:0.10 min:5*(C+N)
max:0.70
Balance

Mechanical Properties :

Grade Tensile Strength
ksi (min.)
Yield Strength 0.2%
Offset ksi (min.)
Elongation -
% in
50 mm (min.)
Hardness
(Brinell) MAX
321/321H 75 30 40 217

Physical Properties :

Denstiy
lbm/in3
Coefficient of
Thermal Expansion (min/in)-°F
Thermal Conductivity BTU/hr-ft-°F Specific Heat BTU/lbm -°F Modules of Elasticity (annealed)2-psi
at 68 °F at 68 – 212°F at 68 – 1832°F at 200°F at 32 – 212°F in tension (E)
0.286 9.2 20.5 9.3 0.12 28 x 106

Flange Types

Threaded Flanges  Flanges Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.
Socket-Weld Flanges  Flanges Socket-Weld Flanges has a female socket in which pipe is fitted. Fillet welding is done from outside on the pipe.
Slip-On Flanges  Flanges Slip-On flange has a hole with matching outside diameter of pipe from which pipe can pass. The flange is placed on pipe and fillet welded from both inside and outside.
Lap Joint Flanges  Flanges Lap flange is having two components, a stub end, and a loose backing flange. Stub end is butt welded to the pipe and Backing flange freely move over the pipe.
Weld Neck Flanges  Flanges Weld neck flange are most widely used flanged in process piping. It gives the highest level of joint integrity due to Butt-welded with a pipe.
Blind Flanges Flanges The blind flange is a blank disc with bolt hole. These types of flanges are used with another type of flange to isolate the piping system
Screwed Flange Flanges 3Screwed Flange is used to connect other components in non-critical applications, low-pressure in which no welding is required.
Reducing Flange Flanges A reducing flange consists of a flange with one specific diameter having different bore and smaller diameter. It s used to change the diameters in piping system.
Forged Flange Flanges They are designed by using corrosion free substance and using an advanced technology. Our team of experts identify each and every product to ensure the best quality and flawless of these products available at suitable rates
Orifice Flange Flanges Orifice Flange helps to measure the flow of liquids and gases using orifice meters located on the outside diameter of the flanges. The main purpose of the orifice flange identifies the flow rate of either liquid or gas in the pipeline system.
Spectacle Flange Flanges A spectacle flange is a specialty flange made of two metal discs attached in the middle by a small section of steel. Spectable flanges get their name because they look like a pair of reading glasses, or spectacles.

Other grades also available :

Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Incoloy 800H, INCOLOY 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Product Usage & Application :

  • Useful in Paper & Pulp Companies
  • Useful in High Pressure Applications
  • Useful in Oil and Gas Industry
  • Useful in Chemical Refinery
  • Useful in Pipeline
  • Useful in High Temperature Application
  • Useful in Water Pipe Line
  • Useful in Nuclear Power Plants
  • Useful in Food Processing and Dairy Industries
  • Useful in Boiler & Heat Exchangers

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates
