Alloy Steel F22 Blind Flanges, ANSI B16.5 Alloy F22 Flanges, Alloy A182 F22 Slip on Flanges & Lap Joint Flanges, Alloy Steel ASTM A182 F22 Flange SUPPLIERS IN INDIA / ASME/ANSI B16.5 Alloy Steel ASTM A182 F22 Flange MANUFACTURER IN INDIA

Flanges plate

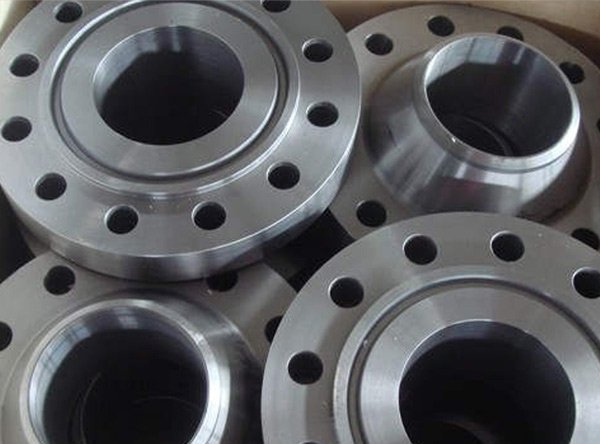

One of the largest Manufacturers & Suppliers of Alloy Steel ASTM A182 F22 Flange, ANSI B16.47 Alloy Steel Threaded Flanges, DIN Alloy Steel ASTM A182 Plate Flanges, Alloy Steel Socket Weld Flanges & Weld Neck Flanges Manufacturer in india.

We are Leading Manufacturers of Alloy Steel ASTM A182 F22 Flange & have huge stock of Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500# & Class 2500, Standard : ASTM, ASME, ANSI, JIS, DIN, BS4504, SABS1123, EN1092-1, UNI, AS2129, GOST-12820 Standards.

Our Alloy Steel Flanges are widely used in various industrial applications. Alloy Steel Flanges are available in Following Specification, Grade and Sizes , Alloy Steel Flange : Alloy forged steel flange is made by alloy steel, which material grade like ASTM A182 F1, F5a, F9, F11, F12, F22, F91, A182 F12, A182 F11, 16MnR, Cr5Mo, 12Cr1MoV, 15CrMo, 12Cr2Mo1, A335 P22, St45.8. etc., Alloy forged steel flange have a good advantage with its performance than Stainless steel flange and carbon steel flange, more efficient, but higher cost than carbon steel flanges, those kinds of flange use in special environment, usually tough exactly.

Product Features:

  • Corrosion resistant
  • Accurate dimensions
  • Can sustain high pressure & temperature load
  • Rust proof finish
  • Smooth transition from flange thickness to pipe
  • Ensure excellent stress distribution

Specification:

Dimension Std ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Specification ASTM A182 / ASME SA182
Standards ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc
Size ½” NB – 48″ NB
Class 150#, 300#, 600#, 900#, 1500#, 2500#, etc
Pressure DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, etc
Certification IBR & NON IBR
Additional Testing NACE MR0175 , NACE TM0284 , HIC TEST , H2 SERVICE , ETC

Material & Grade :

Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Chemical Composition :

Grade C Mn Si P S Cr Mo
Alloy Steel F22 0.50.15 max  0.3-0.6 0.5  0.03 0.03 4-6 0.44-0.65

Mechanical Properties :

Tensile Strength Yield Strength (0.2%Offset) Elongation
205 415 20 %

Flange Types

Threaded Flanges  Flanges Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.
Socket-Weld Flanges  Flanges Socket-Weld Flanges has a female socket in which pipe is fitted. Fillet welding is done from outside on the pipe.
Slip-On Flanges  Flanges Slip-On flange has a hole with matching outside diameter of pipe from which pipe can pass. The flange is placed on pipe and fillet welded from both inside and outside.
Lap Joint Flanges  Flanges Lap flange is having two components, a stub end, and a loose backing flange. Stub end is butt welded to the pipe and Backing flange freely move over the pipe.
Weld Neck Flanges  Flanges Weld neck flange are most widely used flanged in process piping. It gives the highest level of joint integrity due to Butt-welded with a pipe.
Blind Flanges Flanges The blind flange is a blank disc with bolt hole. These types of flanges are used with another type of flange to isolate the piping system
Screwed Flange Flanges 3Screwed Flange is used to connect other components in non-critical applications, low-pressure in which no welding is required.
Reducing Flange Flanges A reducing flange consists of a flange with one specific diameter having different bore and smaller diameter. It s used to change the diameters in piping system.
Forged Flange Flanges They are designed by using corrosion free substance and using an advanced technology. Our team of experts identify each and every product to ensure the best quality and flawless of these products available at suitable rates
Orifice Flange Flanges Orifice Flange helps to measure the flow of liquids and gases using orifice meters located on the outside diameter of the flanges. The main purpose of the orifice flange identifies the flow rate of either liquid or gas in the pipeline system.
Spectacle Flange Flanges A spectacle flange is a specialty flange made of two metal discs attached in the middle by a small section of steel. Spectable flanges get their name because they look like a pair of reading glasses, or spectacles.

Other grades also available :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Incoloy 800H, INCOLOY 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61

Product Usage & Application :

  • Usefull in Paper & Pulp Companies
  • Usefull in High Pressure Applications
  • Usefull in Oil and Gas Industry
  • Usefull in Chemical Refinery
  • Usefull in Pipeline
  • Usefull in High Temperature Application
  • Usefull in Water Pipe Line
  • Usefull in Nuclear Power Plants
  • Usefull in Food Processing and Dairy Industries
  • Usefull in Boiler & Heat Exchangers

Application

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test

Testing

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Packing
