ANSI B16.5 Nickel Flanges, BS,DIN,EN Flanges, UNS N02200 Orifice Flanges, Nickel Alloy UNS N02201 Forged Flanges Suppliers.

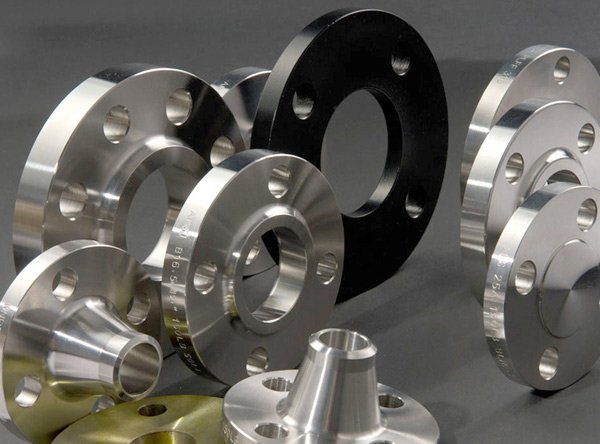

Flanges plate

Rexton Steel & Alloys is one of the largest exporter, manufacturer and supplier of Nickel Alloy 200 Flanges in India.These UNS N02200 Flanges are used for a range of doling out equipment, mainly to preserve the product over its pureness in handling foods, alkalies and synthetic fibers. Nickel 200 Flanges are commerciallyuntaintedformed nickel in the company of having outstandingmechanical featuresand resistance to anextensiveseries of corrosive media.

As an acclaimed enterprise of the industry, Rexton is involved in offering a vast array of Nickel Alloy Flanges as a manufacturer, exporter, stockiest and supplier to our domestic and global clients.

With respect to different grades, we offer these flanges in different types such as Nickel Alloy 200 Slip On Flanges, Nickel Alloy 201 Blind Flanges, Nickel Alloy 200 Weld Neck Flanges, Nickel Alloy 201 Socket Weld Flanges, Nickel Alloy 200 Spectacle Blind Flanges, Nickel Alloy 201 Screwed / Threaded Flanges, Nickel Alloy 200 Reducing Flanges, and Nickel Alloy 201 Ring Type Joint Flanges (RTJ). Meanwhile, with respect to national and international quality of raw materials, we also offer these UNS N02200 Flanges / WNR 2.4066 Flanges and UNS N02201 Flanges / WNR 2.4068 Flanges in customized sizes and thicknesses as per specific demands by our esteemed clients at market leading prices.

Our AS Pipe Flanges are available in customized length, sizes and shapes to our esteemed clients at market leading prices.

Product Features:

  • Corrosion resistant
  • Accurate dimensions
  • Can sustain high pressure & temperature load
  • Rust proof finish
  • Smooth transition from flange thickness to pipe
  • Ensure excellent stress distribution

Specification:

Standards ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
Specification ASTM B 564 / ASME SB 564
Size ½” NB – 48″ NB
Class 150#, 300#, 600#, 900#, 1500#, 2500#
Pressure DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, etc
Certification IBR & NON IBR
Werkstoff Nr Nickel Alloy 200 (UNS No. N02200)/2.4060, 2.4066
Nickel Alloy 201 (UNS No. N02201)/2.4060, 2.4066

Material & Grade :

Nickel :
Grade: Nickel 200, Nickel 201

Chemical Composition :

Grade Ni Fe C Mn Si Cu Mg Ti S
Nickel 200 99.0 min 0.4 max 0.15 max 0.35 max 0.1 max 0.25 max - - 0.01 max

Mechanical Properties :

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Flange Types

Threaded Flanges  Flanges Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.
Socket-Weld Flanges  Flanges Socket-Weld Flanges has a female socket in which pipe is fitted. Fillet welding is done from outside on the pipe.
Slip-On Flanges  Flanges Slip-On flange has a hole with matching outside diameter of pipe from which pipe can pass. The flange is placed on pipe and fillet welded from both inside and outside.
Lap Joint Flanges  Flanges Lap flange is having two components, a stub end, and a loose backing flange. Stub end is butt welded to the pipe and Backing flange freely move over the pipe.
Weld Neck Flanges  Flanges Weld neck flange are most widely used flanged in process piping. It gives the highest level of joint integrity due to Butt-welded with a pipe.
Blind Flanges Flanges The blind flange is a blank disc with bolt hole. These types of flanges are used with another type of flange to isolate the piping system
Screwed Flange Flanges 3Screwed Flange is used to connect other components in non-critical applications, low-pressure in which no welding is required.
Reducing Flange Flanges A reducing flange consists of a flange with one specific diameter having different bore and smaller diameter. It s used to change the diameters in piping system.
Forged Flange Flanges They are designed by using corrosion free substance and using an advanced technology. Our team of experts identify each and every product to ensure the best quality and flawless of these products available at suitable rates
Orifice Flange Flanges Orifice Flange helps to measure the flow of liquids and gases using orifice meters located on the outside diameter of the flanges. The main purpose of the orifice flange identifies the flow rate of either liquid or gas in the pipeline system.
Spectacle Flange Flanges A spectacle flange is a specialty flange made of two metal discs attached in the middle by a small section of steel. Spectable flanges get their name because they look like a pair of reading glasses, or spectacles.

Other grades also available :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Incoloy 800H, Incoloy 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61

Product Usage & Application :

  • Usefull in Paper & Pulp Companies
  • Usefull in High Pressure Applications
  • Usefull in Oil and Gas Industry
  • Usefull in Chemical Refinery
  • Usefull in Pipeline
  • Usefull in High Temperature Application
  • Usefull in Water Pipe Line
  • Usefull in Nuclear Power Plants
  • Usefull in Food Processing and Dairy Industries
  • Usefull in Boiler & Heat Exchangers

Application

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test

Testing

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Packing
