Cupro Nickel Threaded Forged Cross, Cu-Ni Threaded weld Pipe Elbow, Cu-Ni Forged Threaded weld 90deg. Elbow, Cu-Ni Threaded Forged Coupling Exporter, Cu-Ni Threaded Forged Tee Exporter in India.

Forged Fittings plate

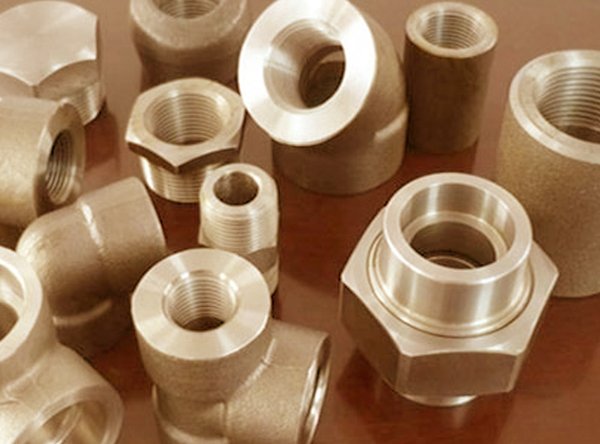

Rexton Steel & Alloys offers a quality range of Copper Nickel Forged Threaded Fittings, where we make use of sophisticated techniques in the manufacturing process which in turn allow us to ensure complete flawlessness of the finished product. Cupro Nickel Forged Threaded Elbow (UNS C70600) also have important additions of iron and manganese which are necessary to maintain good corrosion resistance. Cupro Nickel 9Forged Threaded Tee are annealed at temperatures between 593 and 816 Degree C (1100 and 1500 Degree F). Cupro Nickel Forged Threaded Cross are still used extensively in modern boat building. Meanwhile, Cupro Nickel Forged Threaded Cap are also being offered in different sizes and shapes to our customers. We also offer Cupro Nickel Forged Threaded Fittings at industry leading prices. In some cases, seawater piping systems in Cupro Nickel Forged Threaded Coupling can last a ship’s lifetime.

Typical applications of Cupro Nickel Forged Threaded Union include tubes & tube-plates for light – duty condensers, feed water heaters and evaporators, power stations & multi – core cabled tubes for hydraulic and pneumatic lines. For this purpose, the optimum and critical operating conditions of Cupro Nickel Forged Threaded Bushing are evaluated, where it includes metallurgical, design and fabrication considerations.

Product Features:

  • Corrosion resistant
  • Accurate dimensions
  • Can sustain high pressure & temperature load
  • Rust proof finish
  • Smooth transition from flange thickness to pipe
  • Ensure excellent stress distribution

Specification:

Dimension Std. ANSI/ASME B16.11 & BS3799, etc.
Specification ASTM B122, B171, B466, B467
Size ½” NB – 4” NB
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS, etc
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fitting

Material & Grade :

CU-NI :
Grade:CU-NI-70/30

Chemical Composition

Grade Element
Copper, Cu 70.0
Nickel, Ni 30.0

Mechanical Properties

Properties Metric Imperial
Tensile strength, ultimate 372-517 MPa 54000-75000 psi
Tensile strength, yield (depending on temper) 88.0-483 MPa 12800-70100 psi
Elongation at break (in 381 mm) 45.0% 45.0%
Charpy impact 107 J 78.9 ft-lb
Machinability (UNS C36000 (free-cutting brass) = 100%) 20% 20%
Shear modulus 57.0 GPa 8270 ksi
Poisson's ratio 0.34 0.34
Elastic modulus 150 GPa 21800 ksi

Other grades also available :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Nickel :
Grade: Nickel 200, Nickel 201
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61

Product Usage & Application :

  • Usefull in Paper & Pulp Companies
  • Usefull in High Pressure Applications
  • Usefull in Oil and Gas Industry
  • Usefull in Chemical Refinery
  • Usefull in Pipeline
  • Usefull in High Temperature Application
  • Usefull in Water Pipe Line
  • Usefull in Nuclear Power Plants
  • Usefull in Food Processing and Dairy Industries
  • Usefull in Boiler & Heat Exchangers

Application

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test

Testing

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Packing
